claddings for fireplaces

ESSENTIAL

frame in black painted steel

Essential and contemporary lines, which adapt to any type of furniture and environment. The thin frame is in black painted steel and the large glass allows a great view of the fire.

CM P02

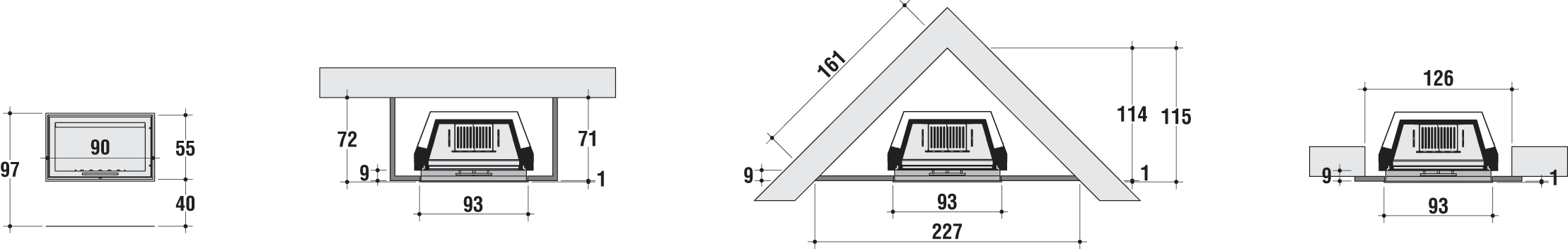

dimensioni ESSENTIAL 02

Swiss ordinance on Air Pollution Control (OlAt) Swiss ordinance on Air Pollution Control (OlAt) German order against air pollution European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Available versions

wood ESSENTIAL 01

wood ESSENTIAL 01

wood ESSENTIAL 02

wood ESSENTIAL 02

wood ESSENTIAL 03

wood ESSENTIAL 03

wood ESSENTIAL 06

wood ESSENTIAL 06

wood ESSENTIAL 80L

wood ESSENTIAL 80L

pellet ESSENTIAL 01

pellet ESSENTIAL 01

Technical data

  classe-AA classe-AA
  CM P02 CM P02
  natural convection forced convection
output 6,5 - 13,0 6,8 - 13,6 kW
nominal thermal output 10,0 10,5 kW
CO emission at 13% oxygen ≤ 0,12 ≤ 0,10 %
efficiency ≥ 78,0 ≥ 80,0 %
average fuel consumption 2,70 2,73 kg/h
flue gas mass flow 12,90 12,80 g/s
flue gas temperature 211 181 °C
flue draught pressure 13 12 Pa
flue exite pipe Ø 200 Ø 200 mm
internal section of chimney flue Ø 20 / 20x20 Ø 20 / 20x20 cm
min. height of chimney flue 4 4 m
air inlet ducts 2 x Ø 15 2 x Ø 15 cm
net weight 215 217 kg
weight with packaging 239 241 kg

Features

caminetto a legna dallo sviluppo orizzontale della porta, con bordo in acciaio verniciato e vetro ceramico; apertura a saliscendi azionabile con l’impiego della maniglia in acciaio inox e ad anta per favorire la pulizia. Camera di combustione completa di Catalizzatore-Frangifiamma rivestita in CMtech®2, refrattario ceramico, con piano fuoco in ghisa. Sono disponibili versioni ad aria calda ventilata o a convezione naturale.
