FERRARA

claddings for fireplaces

FERRARA

marble cladding

Fireplace with a rustic flavor, reminiscent of the furnishings of country houses. The covering is made of Travertino Rosato marble worked in bricks, sandblasted with protective and gray fugato treatment, the base is in polished Rosso Asiago marble, the beam in solid fir wood.

MB NUOVO TRIO PLUS 60

FERRARA

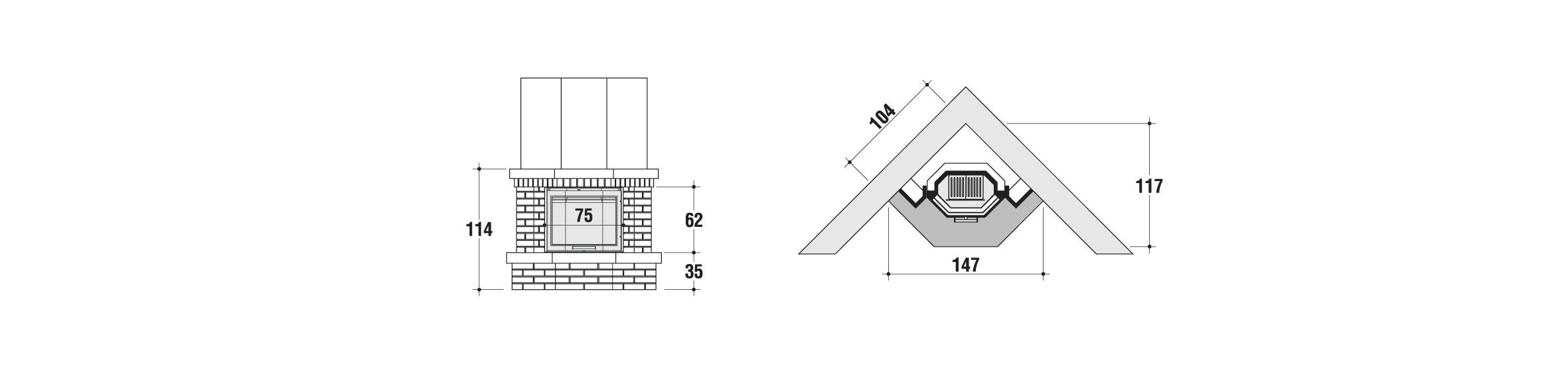

dimensioni FERRARA

European reference standard for inserts and fireplaces European standards conformity mark
Find reseller Request information

Technical data

  classe-A classe-A
  MB NUOVO TRIO PLUS 60
  natural convection forced convection
output 7,1 - 14,3 7,1 -14,3 kW
nominal thermal output 11,0 11,0 kW
CO emission at 13% oxygen ≤ 0,12 ≤ 0,20 %
efficiency ≥ 79,6 ≥ 79,5 %
average fuel consumption 3,00 3,31 kg/h
flue gas mass flow 13,18 16,16 g/s
flue gas temperature 250 207,9 °C
flue draught pressure 12 10,8 Pa
flue exite pipe Ø 180 Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 Ø 18 / 18x18 cm
min. height of chimney flue 4 4 m
air inlet ducts 2 x Ø 12 2 x Ø 12 cm
net weight 194 196 kg
weight with packaging 215 217 kg

Features

marble cladding

caminetto a legna dalle linee tradizionali con porta sagomata a tre lati, bordata in acciaio verniciato e vetro ceramico intero. Apertura a saliscendi con maniglia isolata termicamente e ad anta per la pulizia. Camera di combustione completa di Catalizzatore-Frangifiamma rivestita in CMtech®2, refrattario ceramico, con piano fuoco in ghisa. Sono disponibili versioni ad aria calda ventilata o a convezione naturale.

Download area
