claddings for fireplaces

FRAME

marble frame

The large external frame, in brushed Vicenza stone, plays with concave geometries, which enhance the interior passepartout in absolute black granite, flamed and brushed, and the broad vision of fire. Frame adapts easily to both classic and modern interiors.

LIGHT 03

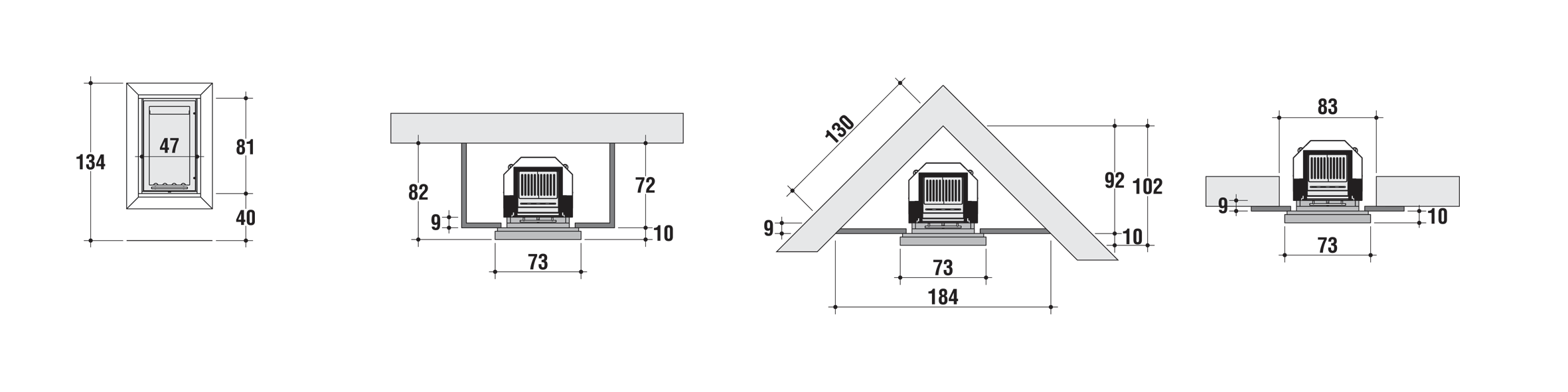

dimensioni FRAME 03

Swiss ordinance on Air Pollution Control (OlAt) Swiss ordinance on Air Pollution Control (OlAt) German order against air pollution European reference standard for inserts and fireplaces European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Available versions

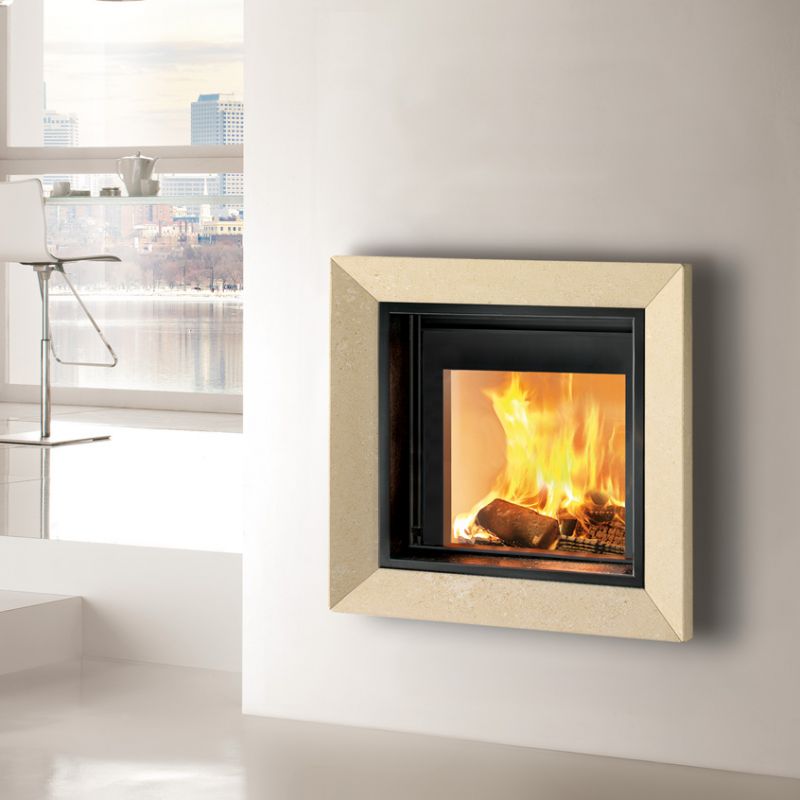

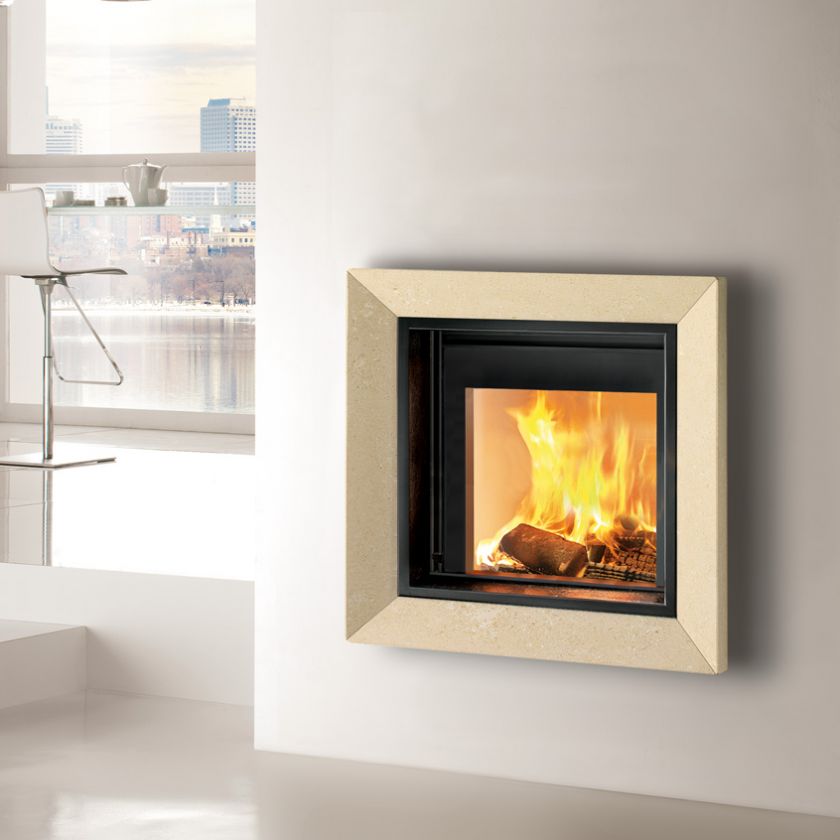

FRAME 01

FRAME 01

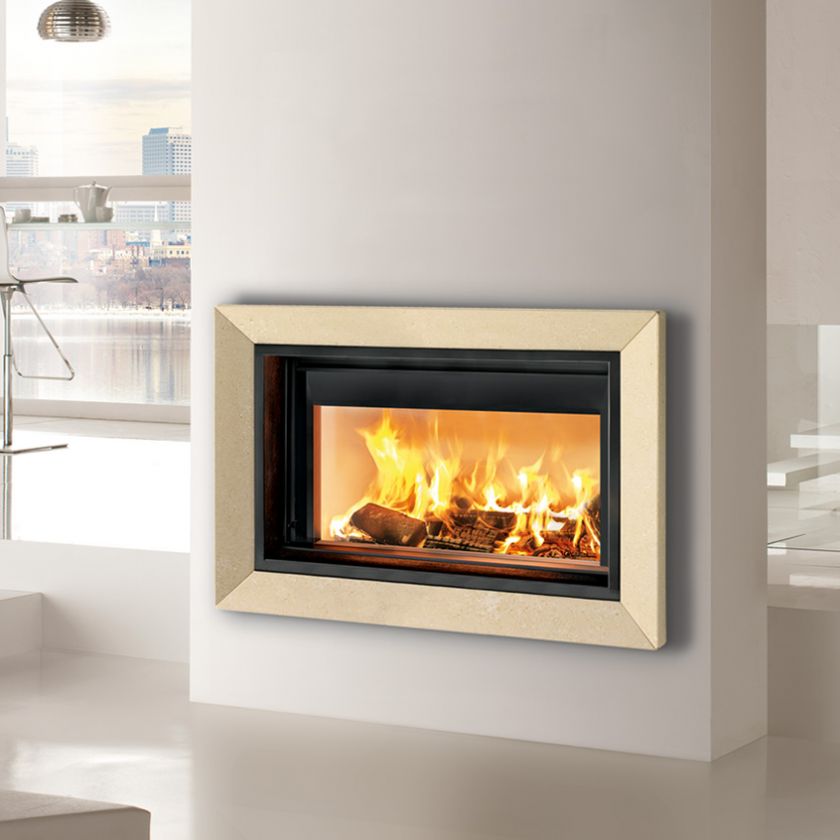

FRAME 02

FRAME 02

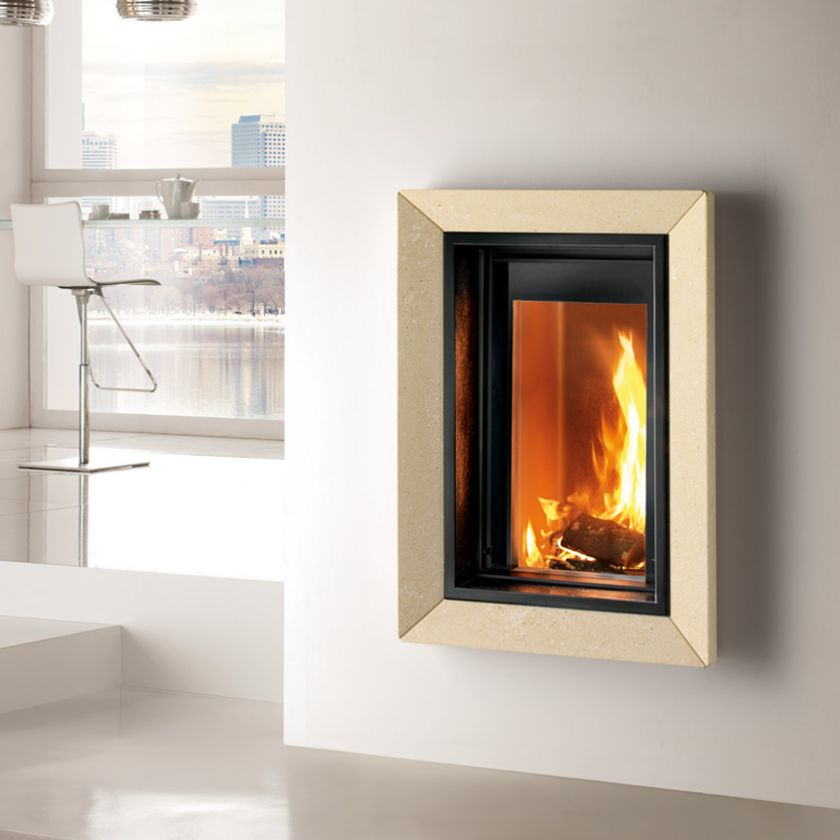

FRAME 03

FRAME 03

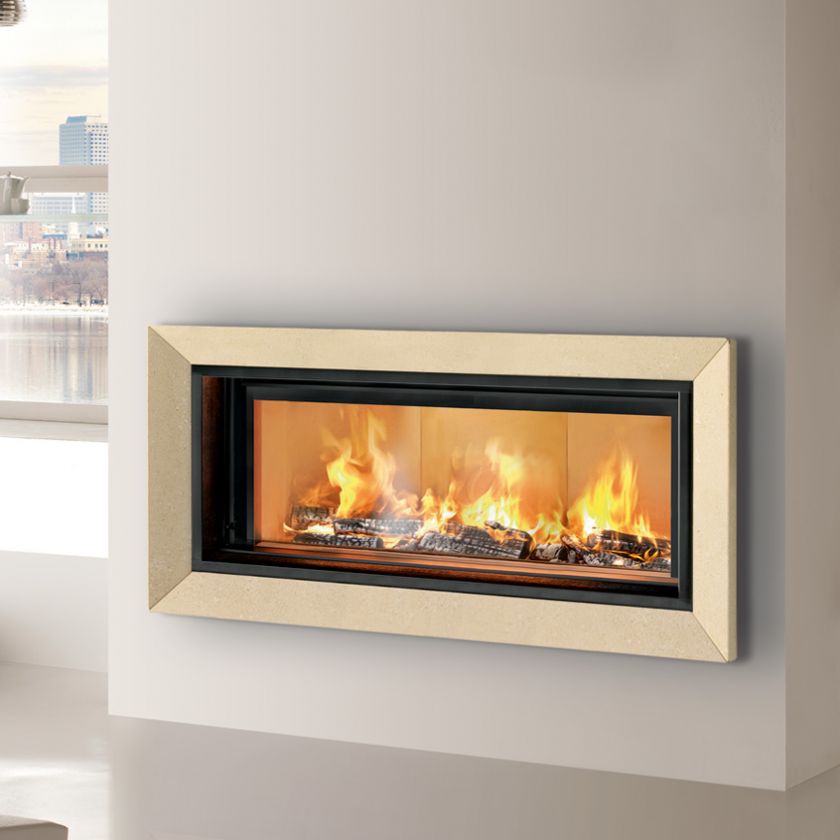

FRAME 06

FRAME 06

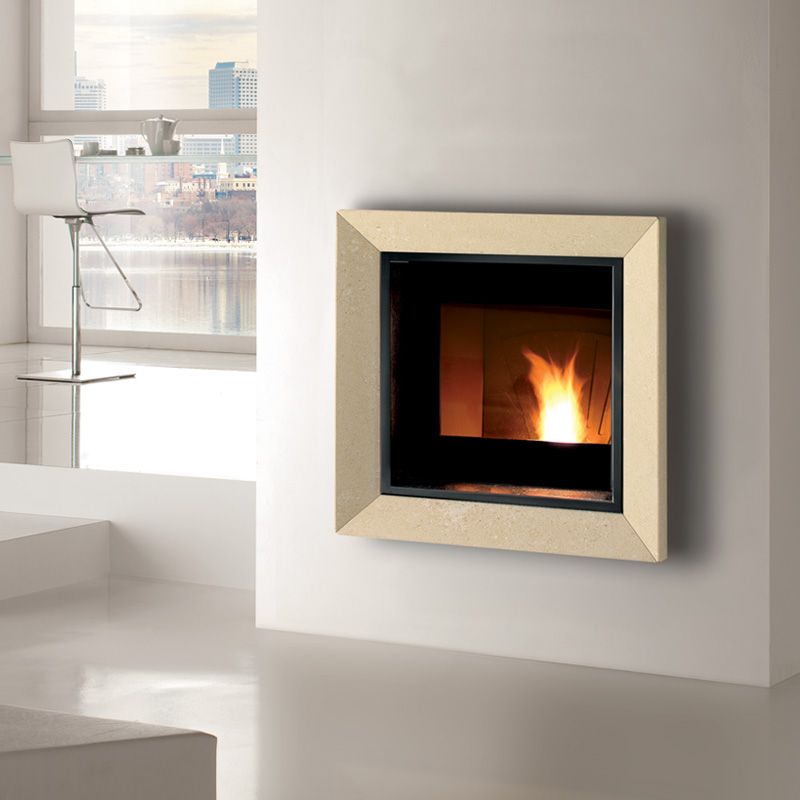

FRAME pellet 01

FRAME pellet 01

Technical data

  classe-AA
  LIGHT 03
  natural convection
output 12,7 kW
nominal thermal output 10,5 kW
CO emission at 13% oxygen 0,098 %
efficiency 82,5 %
average fuel consumption 3,0 kg/h
flue gas mass flow 10,10 g/s
flue gas temperature 253 °C
flue draught pressure 11 Pa
flue exite pipe Ø 180 mm
internal section of chimney flue Ø 18 / 18x18 cm
min. height of chimney flue 4 m
air inlet ducts 2 x Ø 15 cm
net weight 200 kg
weight with packaging 215 kg

Features

caminetto a legna che si contraddistingue dallo sviluppo verticale della porta interamente in vetro ceramico, apribile a saliscendi e a ribalta per la pulizia. Camera di combustione rivestita in CMtech®, refrattario realizzato con spessori importanti: nella parte superiore il Catalizzatore-Frangifi amma è in CMtech®2, refrattario ceramico. Il caminetto può essere completato con due kit opzionali per distribuzione dell’aria calda sia nella versione naturale che ventilata.
