Pellet inserts

AZIMUT

pellet for insertion with ventilated hot air

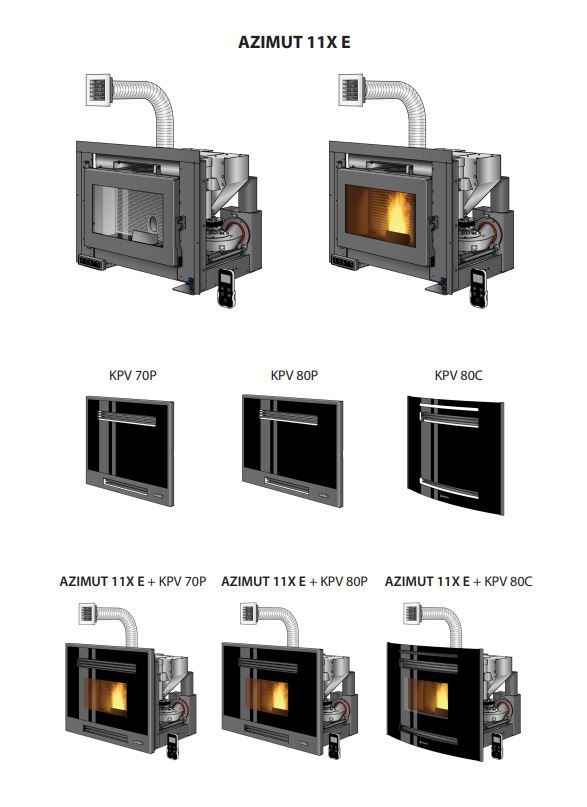

Pellet insert available in two versions: AZIMUT 9V of 9kW with ventilated hot air and AZIMUT 11X of 11 kW with ventilated and ducted hot air. Both versions have the door with "wonder effect": 70 cm, 80 cm flat and 80 cm curved.

AZIMUT 9V - 11X

European reference standard for pellet stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark

Technical data

  classe-AA classe-AA
  AZIMUT 9V AZIMUT 11X
thermal power 9,3 11,3 kW
certified power 4,1 - 8,5 4,7 - 10,2 kW
CO emission at 13% of oxygen 0,0124 0,0078 %
efficiency 90,9 90,3 %
fuel consumption 0,92 - 1,94 1,04 - 2,35 kg/h
smokes mass flow 4,0 - 6,2 4,2 - 6,9 g/s
smokes temperature 98 - 145 96 - 172 °C
flue draught pressure 11 10 Pa
fuel capacity 15 15 Kg
autonomy 16 - 7,5 14 - 6 h
fuel exite pipe Ø 80 Ø 80 mm
combustion air intake Ø 80 Ø 80 mm
net weight 87 93 kg
weight with packaging 101 107 kg
AZIMUT 9V - 11X
