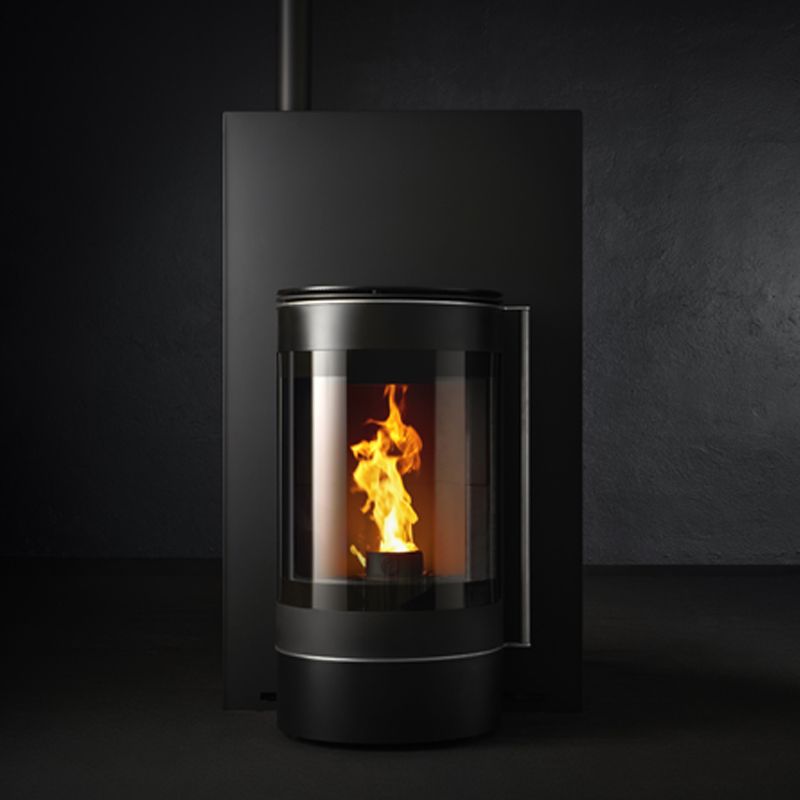

standard Alter Ego
Pellet Plug-In
ALTER EGO
the revolution of pellet stoves
Until today, pellet stoves have been designed with a tank, the hopper, placed in the same heater's casing, often at the back of the appliance. This technical bond has also become an aesthetic and design constraint: pellet stoves always have the same shapes, a design that is always the same and without the possibility of great variations. Thanks to Plug-In, aesthetics are no longer tied to technology: design becomes captivating and unmatched, free to express itself in all its forms, in all its beauty. Plug-In is the revolutionary concept of pellets, the patented system that gives life to a new stove: high energy performance marrying avant-garde design. Plug-In, covered by the European patent n ° 16738687.9, allows to move the technical part in a wall tank, in the rear part of the stove. In this way emphasis is given to design, which for the first time can play with different shapes and styles. The split system, the heart of the Plug-In patent, is made up of two units connected to each other: a front one, round and harmonious, and the other consisting of an innovative rear technical compartment. Never before now, aesthetics are free to explore new worlds and the technique of finding new solutions.
I am the aesthetics
Unique and innovative design
Beauty in its highest expression.
The design of Alter Ego is captivating and unmatched, while the compact dimensions guarantee the minimum
overall dimensions of the stove. The upper part of Alter Ego is decorated with an elegant play of lines shapes
soft and sinuous.
Wide vision of the fire
The large front door of Alter Ego ensures a broad view of the fire: 180 degrees of pure charm and warm light, which create an immediate feeling of well-being and a relaxing atmosphere.
To each his self
The maximum expression of the personality: the panel behind the central round body is completely customizable. Alter Ego thus adapts itself to all styles, to all needs, to all the thousand nuances of the self.
I am the technique
Exclusive Plug In patent.
A revolutionary concept of a pellet stove, which uses patented Plug In technology.
A split system connects the two units of Alter Ego: one front, round and harmonious, and the other composed of an innovative rear technical compartment.
Cast iron combustion chamber
The beauty is eternal: this is why the combustion chamber of Alter Ego is designed and built in cast iron, a material that more than any other resists the test of time and heat and that guarantees high performance, as well as excellent thermal conduction.
The technique at the service of aesthetics
8 kW of pure power, which thanks to the double side and upper ventilation and to the thermal irradiation, allow to spread the heat in a uniform and constant way. The 20 kg tank allows long-lasting autonomy. The double closure system ensures greater safety. Easy to use, Alter Ego is equipped with a backlit touchscreen radio control.
PLUG-IN

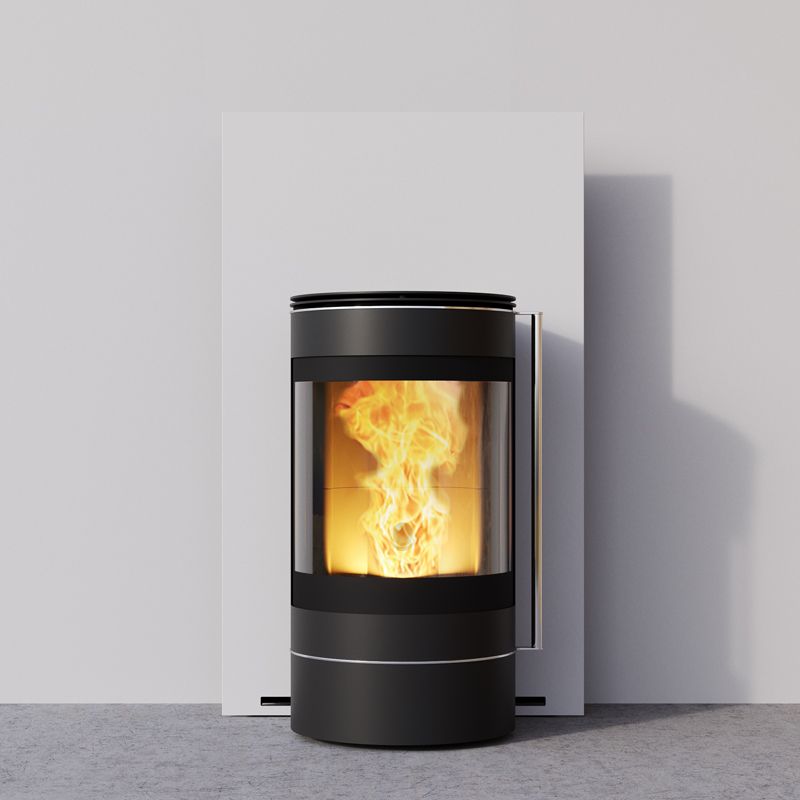

Available versions

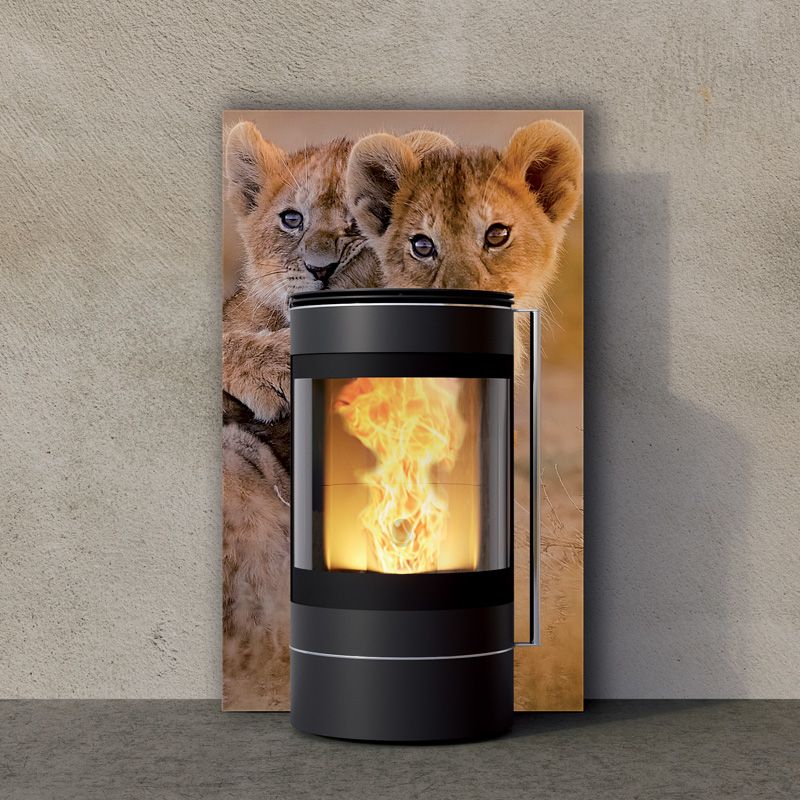

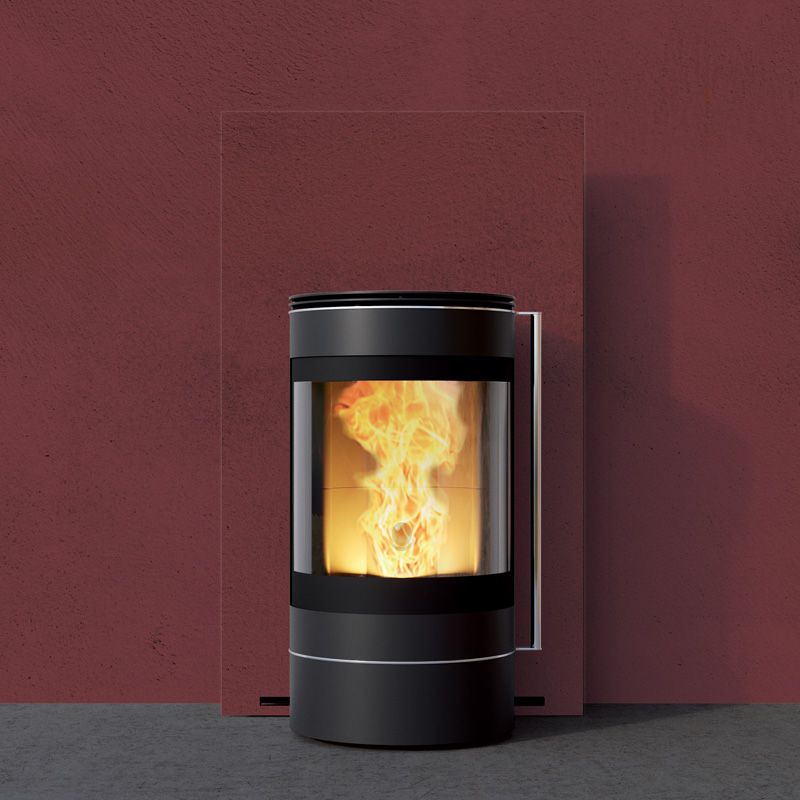

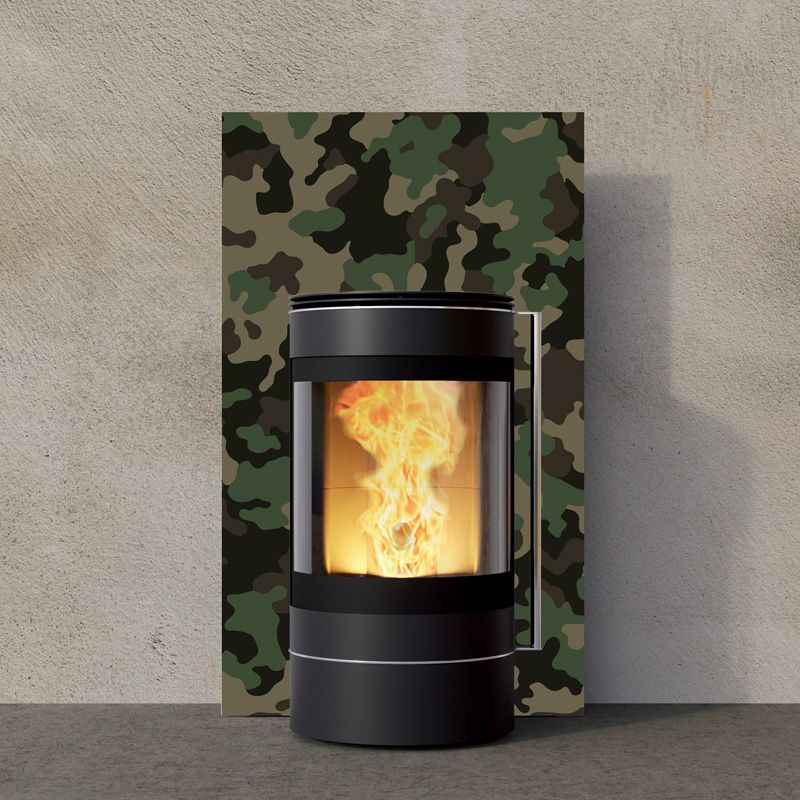

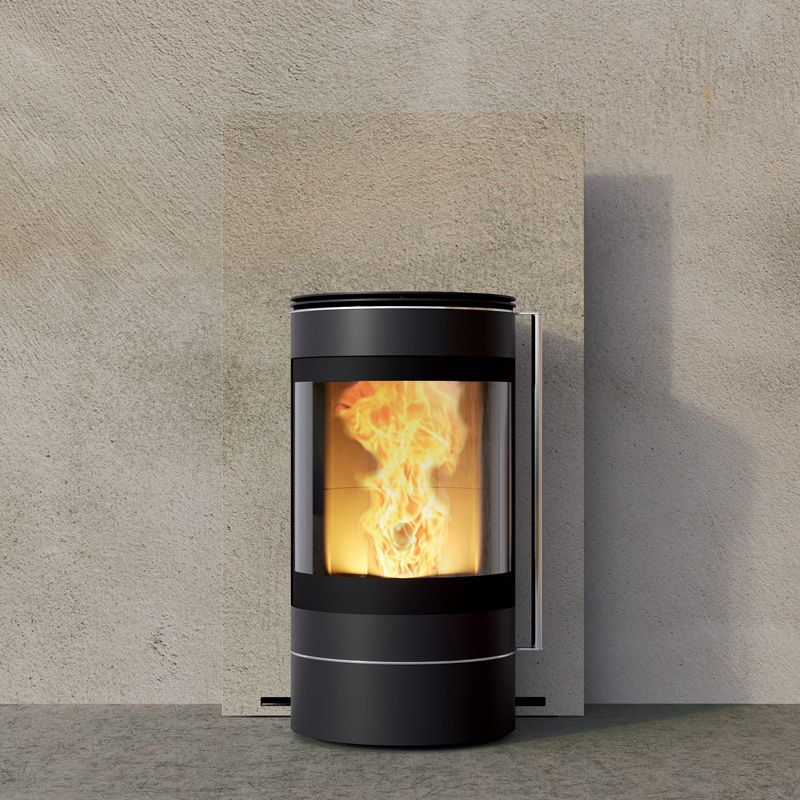

examples of personalization
examples of personalization
examples of personalization
examples of personalization
examples of personalization

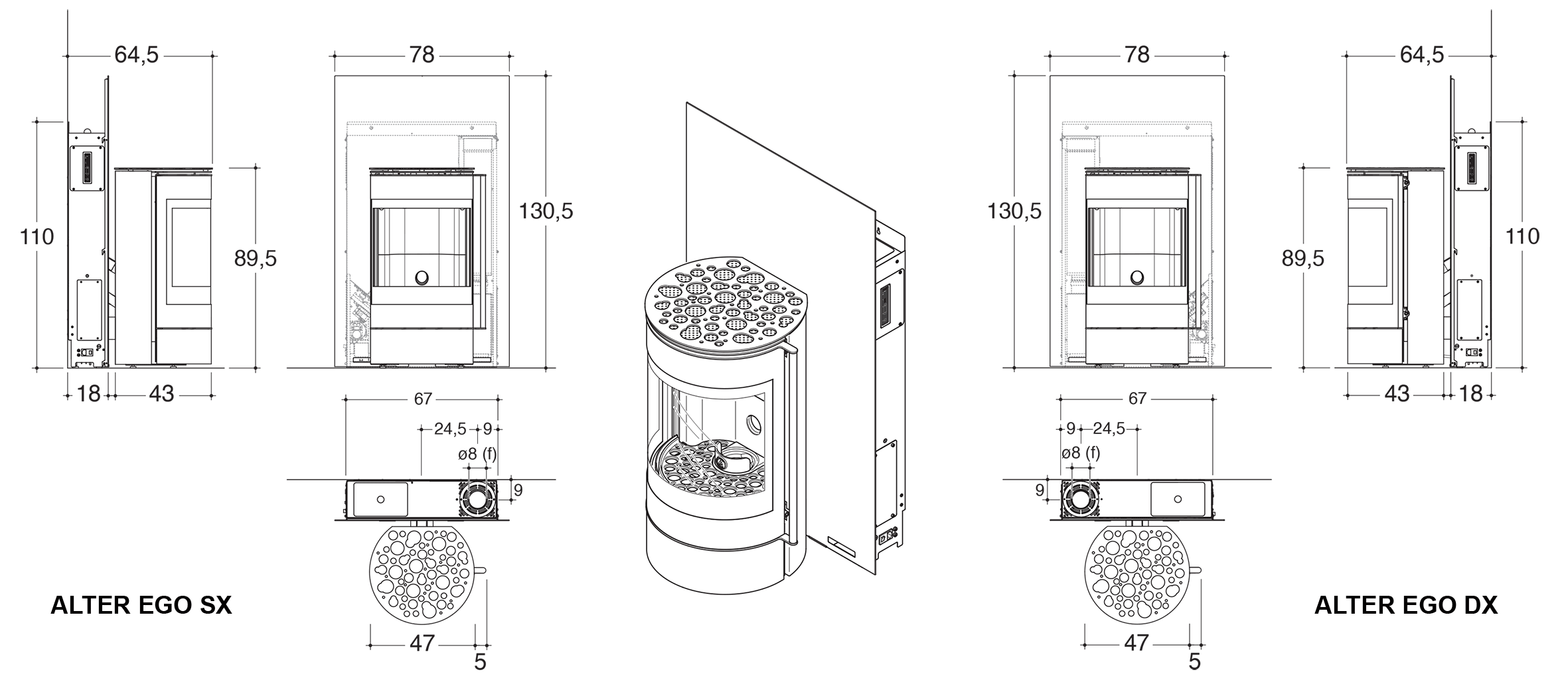

Technical data
 |
|||
| AX11 | |||
| global thermal output | 7,6 | kW | |
| nominal thermal output | 3,4 - 7,0 | kW | |
| CO emission at 13% oxygen | ≤ 0,02 | % | |
| efficiency | ≥ 91,9 | % | |
| fuel consumption | 0,75 - 1,6 | kg/h | |
| smokes mass flow | 2,8 - 5,4 | g/s | |
| smokes temperature | 76 - 134 | °C | |
| flue draught pressure | 9 | Pa | |
| fuel capacity | 20 | Kg | |
| autonomy | 26,5 - 12,5 | h | |
| fuel exite pipe | Ø 80 | mm | |
| combustion air intake | coaxial Ø 125 | mm | |
| net weight | 150 | kg | |
| weight with packaging | 175 | kg | |
Features
Alter Ego is the pellet stove for those who want the best for themselves, for those who want to give expression to all the thousand nuances of the ego.
The panel that separates the front part of Alter Ego from the technical compartment is customizable and adapts to any style requirement. Thus the ego, the ego, can express itself in all its forms.
Alter Ego comes with either the black or neutral series panel. The neutral panel allows you to customize Alter Ego, adapt it to your environment and express yourself. Caminetti Montegrappa does not realize any kind of customization, which is the responsibility of the final customer.
UNIQUE AND INNOVATIVE DESIGN
Harmonious lines and round shapes, beauty in its maximum expression.
The design of Alter Ego is captivating and unmatched. The upper part of Alter Ego is decorated with an elegant game of reliefs with soft and sinuous lines.
PATENTED TECHNOLOGY PLUG-IN SYSTEM
A new concept of pellet stove that uses the split system. These are two units connected to each other: one front, round and harmonious, and the other composed of an innovative rear technical compartment.

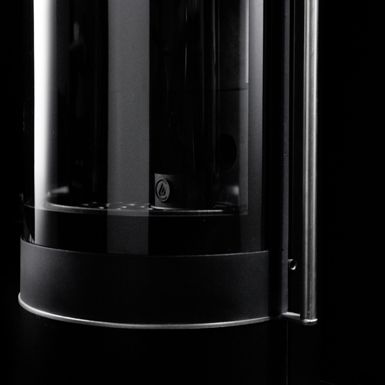

TECHNICAL CHARACTERISTICS WITHOUT EGUALS
8 kW of pure power, which thanks to the double ventilation - lateral and upper - and to the thermal irradiation, allow to spread the heat in a uniform and constant way. The 20 kg tank allows long-lasting autonomy. The double closure system ensures greater safety. Alter Ego is equipped with a backlit touchscreen radio control.

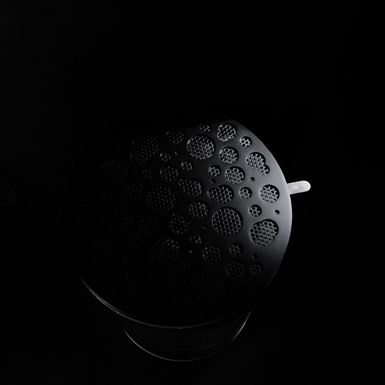

MINIMUM INGOMBRO, MAXIMUM COMFORT
The small dimensions of Alter Ego make it the perfect stove even for small spaces. The double ventilation system also allows a more uniform heat radiation, perfect for heating the environment in a homogeneous way.
WELLNESS AT 180 DEGREES
The large front door of Alter Ego ensures a broad view of the fire: 180 degrees of pure charm and warm light, which create an immediate feeling of well-being and a relaxing atmosphere.

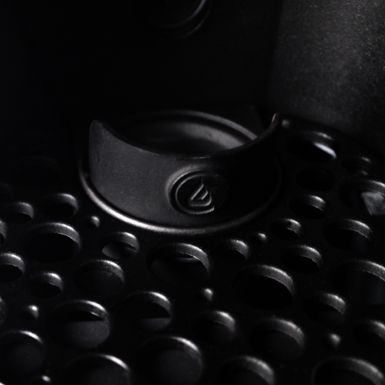

COMBUSTION CHAMBER IN CAST IRON
The beauty is eternal: this is why the combustion chamber of Alter Ego is designed and built in cast iron, a material that more than any other resists the test of time and heat and that guarantees high performance, as well as excellent thermal conduction.
YOUR ALTER EGO
The furniture always reflects the style of those who live that space, its characteristics, its personality. This is why the panel of Alter Ego placed behind the central round body is completely customizable, to enhance the unique style of those who choose the best of design combined with the latest technologies.

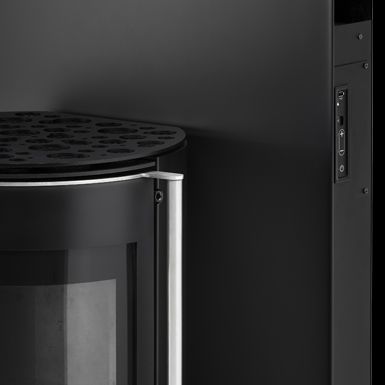

USER FRIENDLY
Intuitive software allows you to set both the ambient temperature and the maximum operating power. Alter Ego is equipped with ECO STOP function, which allows you to maintain the desired comfort in the indoor environment. The electronic board allows you to manage the external thermostats. Finally, Alter Ego has the WI Fi module (optional).
SIMPLICITY OF INSTALLATION
Alter Ego's Plug-In technology is advanced, but installation is as easy as that of common pellet stoves. Furthermore, the procedure for the first ignition carried out by a technician is not mandatory, thanks to the tests carried out on each individual product at the end of the production line.
