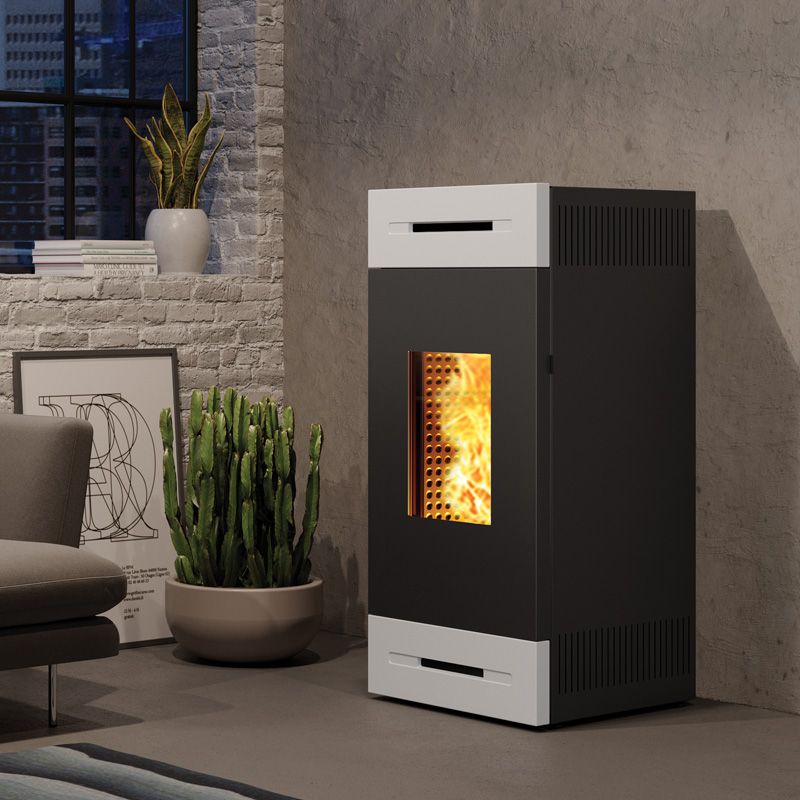

TILE M

Pellet stoves

TILE M

pellet stove

Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The Tile M coating is in majolica, the structure in painted steel. Tile M is available in four colors: matt white, dove colour, grey, glossy bordeaux.

MP AUP

structure body and cladding: L 48 x P 53,5 x H 109 cm

European reference standard for pellet stoves European standards conformity mark
Find reseller Request information

Available versions

matt white

matt white

dove colour

dove colour

grey

grey

glossy bordeaux

glossy bordeaux

Technical data

  classe-AA
  MP13 AUP
global thermal output 12,8 kW
nominal thermal output 4,9 - 11,3 kW
CO emission at 13% oxygen

0,02

 %
efficiency 88,0 %
fuel consumption 1,07 - 2,66 kg/h
smokes mass flow 4,3 - 7,4 g/s
smokes temperature 106 - 203 °C
flue draught pressure 6 Pa
fuel capacity 30 Kg
autonomy 28 - 11 h
fuel exite pipe Ø 80 mm
combustion air intake Ø 60 mm
net weight 114 kg
weight with packaging 126 kg
MP AUP
