TILE XW

Wood stoves

TILE XW

wood forced convection

Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The Tile coating is in majolica, the structure in painted steel. Tile XW is available in four colours: matt white, dove colour, grey, glossy bordeaux.

Pleasant aesthetics

Space space optimization

Longer life, guaranteed by the use of cast iron

Reduction of wood consumption for greater savings

Reduction of polluting emissions

Minimal and easy maintenance: the cleaning of the stove is quick and easy

Adjustment of the ducting fan

Certified to get the benefits of tax deductions

LH11V

structure body and cladding: L 48 x P 53,5 x H 109 cm

European reference standard for wood stoves European Directive for biomass domestic appliances: stoves, fireplaces and kitchens (Regulations UE 2015/1185) European standards conformity mark
Find reseller Request information

Available versions

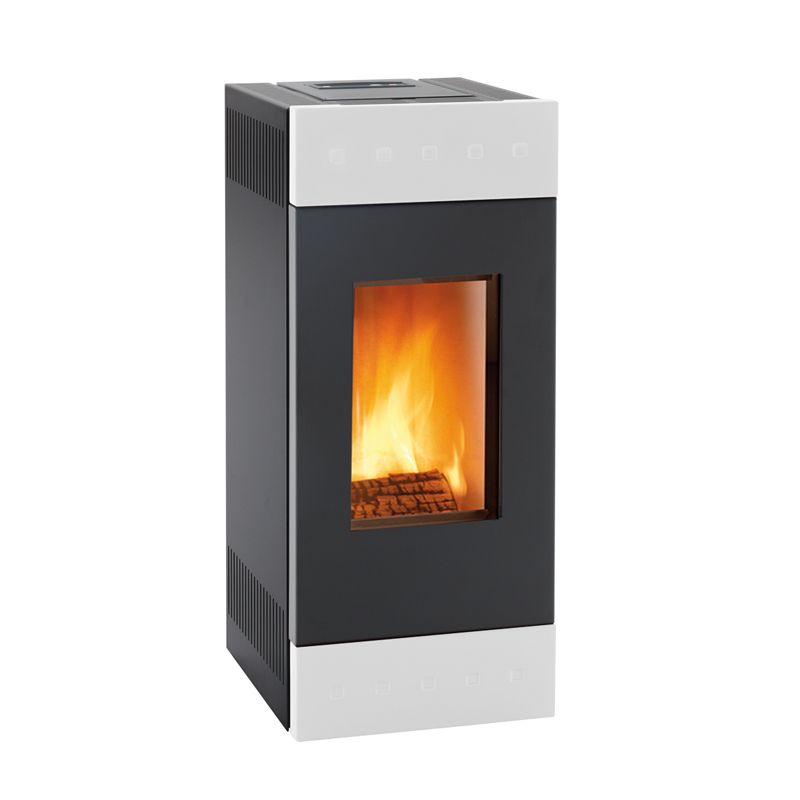

matt white

matt white

dove colour

dove colour

grey

grey

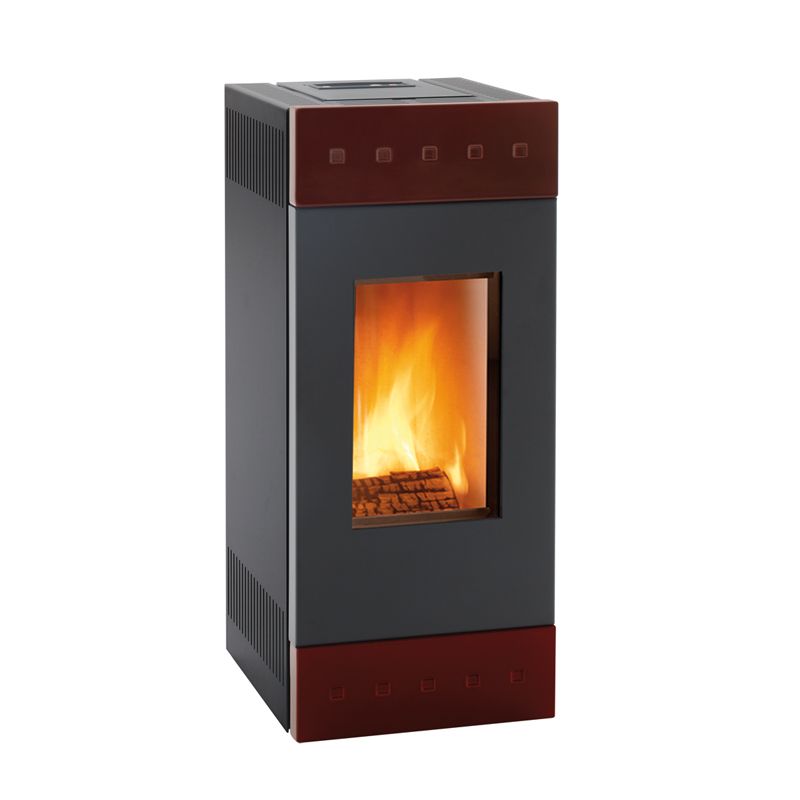

glossy bordeaux

glossy bordeaux

Technical data

  classe-A
  LH11V
nominal thermal output 11,0 kW
CO emission at 13% oxygen 0,076 %
efficiency 85,1 %
average fuel consumption 2,67 kg/h
flue gas mass flow 8,3 g/s
flue gas temperature 199 °C
flue draught pressure 10 Pa
flue exite pipe Ø 150 mm
min. height of chimney flue 3 m
net weight 127 kg
weight with packaging 139 kg



LH11V
